CASE Cylinder Seal Kits
CASE Cylinder Seal Kits
122535A1

CASE Cylinder Seal Kits 122535A1

Explore top-quality case cylinder seal kits designed for heavy-duty machinery. These seals offer excellent durability, ensuring long-lasting performance for your equipment. Perfect for maintaining and enhancing the efficiency of your CASE machines, reducing downtime and repair costs.

Part Number: 122535A1
Min. Order Quantity: 1 Set or 1 Bag
Supply Ability: 1000 Sets per Week
Delivery Time: 5-7 days for samll order
ROD: 2″ (50.8mm)
BORE: 4″ (101.6mm)
Applicable models: 122535A1 Swing Seal Kit fits Case 570XLT 580 Super L 590 Super L 580 SUPER L CONSTRUCTION KING 580SM II 580Sm Iii 580SM+ II 580SM+ III 590 SM 590SM II

Replacement Part Description:

This aftermarket seal kit is a new OEM product that directly replaces the original parts with high quality and at a much lower cost. It is not branded as CASE®, but it serves as an effective substitute.

CASE Cylinder Seal Kits 122535A1 Applications:

(7000) – SUGAR CANE HARVESTER (CHASSIS START NUMBER 0001534) (BRAZIL) (1/97-12/07)

(B02.06[01]) – Hydraulic Cylinder {Elevator Slew} » 122535A1

(7700) – AUSTOFT SUGAR CANE HARVESTER (2002) (12/02-12/02)

(B02[06]) – HYDRAULIC CYLINDER {Elevator Slew} » 122535A1

(7700) – AUSTOFT SUGAR CANE HARVESTER – 2003 (1/03-12/03)

(B02[06]) – HYDRAULIC CYLINDER {Elevator Slew} » 122535A1

(7700) – SUGAR CANE HARVESTER (CHASSIS START NUMBER 0001534) (BRAZIL) (1/02-12/02)

(B02.06[01]) – Hydraulic Cylinder {Elevator Slew} » 122535A1

(A7000) – SUGAR CANE HARVESTER (BRAZIL) – 2006 (4/06-12/09)

(B02.06[01]) – Hydraulic Cylinder {Elevator Slew} » 122535A1

(A7700) – SUGAR CANE HARVESTER (BRAZIL) – 2006 (4/06-12/09)

(B02.06[01]) – Hydraulic Cylinder {Elevator Slew} » 122535A1

(A7700) – SUGAR CANE HARVESTER (BRAZIL) – 2008 (1/08-12/09)

(B02.06[01]) – Hydraulic Cylinder {Elevator Slew} » 122535A1

(A8000) – SUGAR CANE HARVESTER (BRAZIL) (TYRE MACHINE) – ASN 880001 (4/09-)

(80.420.AB[02]) – HYDRAULIC CYLINDER (ELEVATOR SLEW) » 122535A1

(A8800) – SUGAR CANE HARVESTER (BRAZIL) (TRACK MACHINE) – ASN 880001 (4/09-)

(80.420.AB[02]) – HYDRAULIC CYLINDER (ELEVATOR SLEW) » 122535A1

(A8800) – SUGAR CANE MULTI ROW BR (5/13-12/15)

(80.420.AB[02]) – HYDRAULIC CYLINDER (ELEVATOR SLEW) » 122535A1

(580L) – LOADER BACKHOE (NORTH AMERICA) (2/97-12/97)

(8-130) – BACKHOE SWING CYLINDERS, 4 INCH INSIDE DIAMETER » 122535A1

(8-131A) – BACKHOE SWING CYLINDER, 4 INCH INSIDE DIAMETER » 122535A1

(590L) – LOADER BACKHOE (1/98-12/98)

(8-154) – BACKHOE SWING CYLINDERS, MODELS WITH PRIORITY SWING » 122535A1

(8-156) – BACKHOE SWING CYLINDERS, MODELS WITH NON-PRIORITY SWING » 122535A1

(580M) – SERIES 3 LOADER BACKHOE TIER 3 (NA) – ASN N8C500000 (2/08-12/10)

(00-01) – INITIAL STOCKING LIST (ISL) » 122535A1

(580N) – LOADER BACKHOE (TIER 3) (4/10-12/12)

(05.500.01[02]) – INITIAL STOCKING LIST “B” (ISL) – FOR NA ONLY » 122535A1

(580SL) – LOADER BACKHOE (5/98-12/00)

(8-156) – BACKHOE SWING CYLINDERS, MODELS WITH PRIORITY SWING » 122535A1

(8-158) – BACKHOE SWING CYLINDERS, MODELS WITH NON-PRIORITY SWING » 122535A1

(580SL) – SERIES 2 LOADER BACKHOE – ASN JJG0258464 (4/94-12/00)

(8-134) – BACKHOE SWING CYLINDERS » 122535A1

(590SL) – LOADER BACKHOE (3/95-12/98)

(8-154) – BACKHOE SWING CYLINDERS, MODELS WITH PRIORITY SWING » 122535A1

(8-156) – BACKHOE SWING CYLINDERS, MODELS WITH NON-PRIORITY SWING » 122535A1

(590SL) – SERIES 2 LOADER BACKHOE – ASN JJG0210575 (3/98-12/00)

(9-18) – BACKHOE SWING CYLINDERS » 122535A1

(580SM) – LOADER BACKHOE (NORTH AMERICA) (12/99-12/04)

(08-58) – CYLINDER ASSY – BACKHOE SWING » 122535A1

(580SM) – SERIES 2 LOADER BACKHOE (TIER 2) (NA) – ASN N4C304000 (2/04-12/08)

(08-66) – CYLINDER ASSY – BACKHOE SWING » 122535A1

(580SM) – SERIES 3 LOADER BACKHOE TIER 3 (NA) – ASN N8C5040000 (2/08-12/10)

(05.100.01[01]) – INITIAL STOCKING LIST (ISL) 580SM » 122535A1

(05.100.01[02]) – INITIAL STOCKING LIST (ISL) 580SM+ » 122535A1

(35.739.02[01]) – CYLINDER ASSY – BACKHOE SWING » 122535A1

(580SM) – SERIES 3 TLB TIER 3 DECOMPLEXITY – COMPLETED FIGURES (2/08-12/10)

(35.739.02[01]) – CYLINDER ASSY – BACKHOE SWING » 122535A1

(580SM+) – SERIES 2 LOADER BACKHOE (TIER 2) (NA) – ASN N4C307000 (2/04-12/08)

(08-66) – CYLINDER ASSY – BACKHOE SWING » 122535A1

(580SM+) – SERIES 3 LOADER BACKHOE TIER 3 (NA) – ASN N8C508000 (2/08-12/08)

(05.100.01[01]) – INITIAL STOCKING LIST (ISL) 580SM » 122535A1

(05.100.01[02]) – INITIAL STOCKING LIST (ISL) 580SM+ » 122535A1

(35.739.02[01]) – CYLINDER ASSY – BACKHOE SWING » 122535A1

(590SM) – LOADER BACKHOE (NORTH AMERICA) (12/01-12/04)

(08-57) – CYLINDER ASSY – BACKHOE SWING » 122535A1

(590SM) – SERIES 2 LOADER BACKHOE (TIER 2) (NA) – ASN N4C309000 (1/03-12/08)

(08-66) – CYLINDER ASSY – BACKHOE SWING » 122535A1

(590SM) – SERIES 3 LOADER BACKHOE TIER 3 (NA) – ASN N8C508500 (2/08-12/10)

(00-01[01]) – INITIAL STOCKING LIST (ISL) 590SM » 122535A1

(00-01[02]) – INITIAL STOCKING LIST (ISL) 590SM+ » 122535A1

(08-66) – CYLINDER ASSY – BACKHOE SWING » 122535A1

(590SM+) – SERIES 3 LOADER BACKHOE TIER 3 (NA) – ASN N8C509200 (2/08-12/10)

(00-01[01]) – INITIAL STOCKING LIST (ISL) 590SM » 122535A1

(00-01[02]) – INITIAL STOCKING LIST (ISL) 590SM+ » 122535A1

(08-66) – CYLINDER ASSY – BACKHOE SWING » 122535A1

(580SN) – BACKHOE LOADER – TIER 4A – FROM PIN NCC564000 (3/12-2/15)

(35.739.0202) – CYLINDER – BACKHOE SWING » 122535A1

(580SN) – LOADER BACKHOE – TIER 3 (4/10-12/12)

(05.500.01[02]) – INITIAL STOCKING LIST “B” (ISL) – FOR NA ONLY » 122535A1

(35.739.03) – CYLINDER – BACKHOE SWING (580SN, 580SN WT, 590SN) » 122535A1

(580SN) – LOADER BACKHOE – TIER 3 NRC (3/12-2/15)

(35.739.0202) – HYDRAULIC SYSTEM – CYLINDER BACKHOE SWING / STABILIZER » 122535A1

(580SN WT) – BACKHOE LOADER, WIDE TRACK – TIER 3 (7/09-12/12)

(05.500.01[02]) – INITIAL STOCKING LIST “B” (ISL) – FOR NA ONLY » 122535A1

(35.739.03) – CYLINDER – BACKHOE SWING (580SN, 580SN WT, 590SN) » 122535A1

(580SN WT) – BACKHOE LOADER, WIDE TRACK – TIER 4A (3/12-2/15)

(35.739.0202) – CYLINDER – BACKHOE SWING » 122535A1

(590SN) – BACKHOE LOADER – TIER 4A (3/12-2/15)

(35.739.0202) – CYLINDER – BACKHOE SWING » 122535A1

(590SN) – LOADER BACKHOE (TIER 3) (11/10-12/12)

(05.500.01[02]) – INITIAL STOCKING LIST “B” (ISL) – FOR NA ONLY » 122535A1

(35.739.03) – CYLINDER – BACKHOE SWING (580SN, 580SN WT, 590SN) » 122535A1

(590SN) – LOADER BACKHOE – TIER 3 NRC (3/12-2/15)

(35.739.0202) – HYDRAULIC SYSTEM – CYLINDER BACKHOE SWING / STABILIZER » 122535A1

(570LXT) – LOADER LANDSCAPER (1/94-12/97)

(8-130) – BACKHOE SWING CYLINDERS, 4 INCH INSIDE DIAMETER » 122535A1

(8-131A) – BACKHOE SWING CYLINDER, 4 INCH INSIDE DIAMETER » 122535A1

*All manufacturer names, part numbers, and descriptions are provided for reference only. We do not suggest that any part displayed is a product of these manufacturers, nor do we claim that the list price presented is identical to that of the manufacturer.

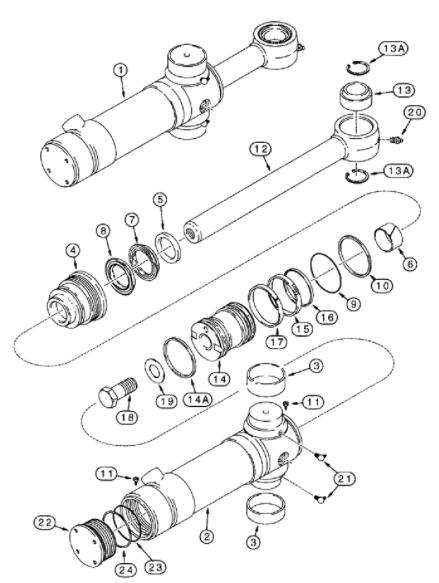

122535A1 SEAL KIT

CASE Cylinder Seal Kits 122535A1

 1. 139808A1 [2]   CYLINDER ASSY.
2. 139810A1 [1]   TUBE,101.60mm Dia
2. 199953A1 [1]   BARREL,101.6mm Diameter
3. 124568A2 [2]   RING,69.92mm ID x 77mm OD x 28mm L
. . NSS [1]   NOT SOLD SEPARAT
4. G109899 [1]   GLAND
5. D95144 [1]   WIPER SEAL,   IN STOCK
6. G101533 [1]   WEAR RING,Split   IN STOCK
. . 1542876C1 [1]   SEAL KIT,50.8mm Rod   IN STOCK
7. 1543001C1 [1]   SEAL
8. 1543000C1 [1]   SEAL
9. 238-5239 [1]   O-RING   IN STOCK
10. G109299 [1]   BACK-UP RING,   IN STOCK
11. 276-2446 [2]   SELF-TAP SCREW,Hex Hd, #8 x 3/8″
12. 177518A1 [1]   PISTON ROD
13. 137248A1 [1]   RING,50.79mm ID x 80.96mm OD x 44.45mm W
13A. 100-21315 [2]   SNAP RING,3.156″, Int, #315
14. 112370A2 [1]   JACK PISTON
14A. 121478A1 [1]   RING,   IN STOCK
15. G102285 [1]   SEAL,Locking,   IN STOCK
16. G100440 [1]   RING,Square,  IN STOCK
17. G100448 [1]   RING,1   IN STOCK
18. 28-1664 [1]   BOLT,Hex,
19. G32303 [1]   WASHER,
20. 219-1 [1]   LUBE NIPPLE,
21. 219-55 [2]   LUBE NIPPLE,
. . 124462A1 [1]   CYLINDER END CAP
22. 124463A1 [1]   CYLINDER END CAP
23. 238-5242 [1]   O-RING,  IN STOCK
24. G32176 [1]   BACK-UP RING   IN STOCK
. . 122535A1 [1]   SEAL KIT
