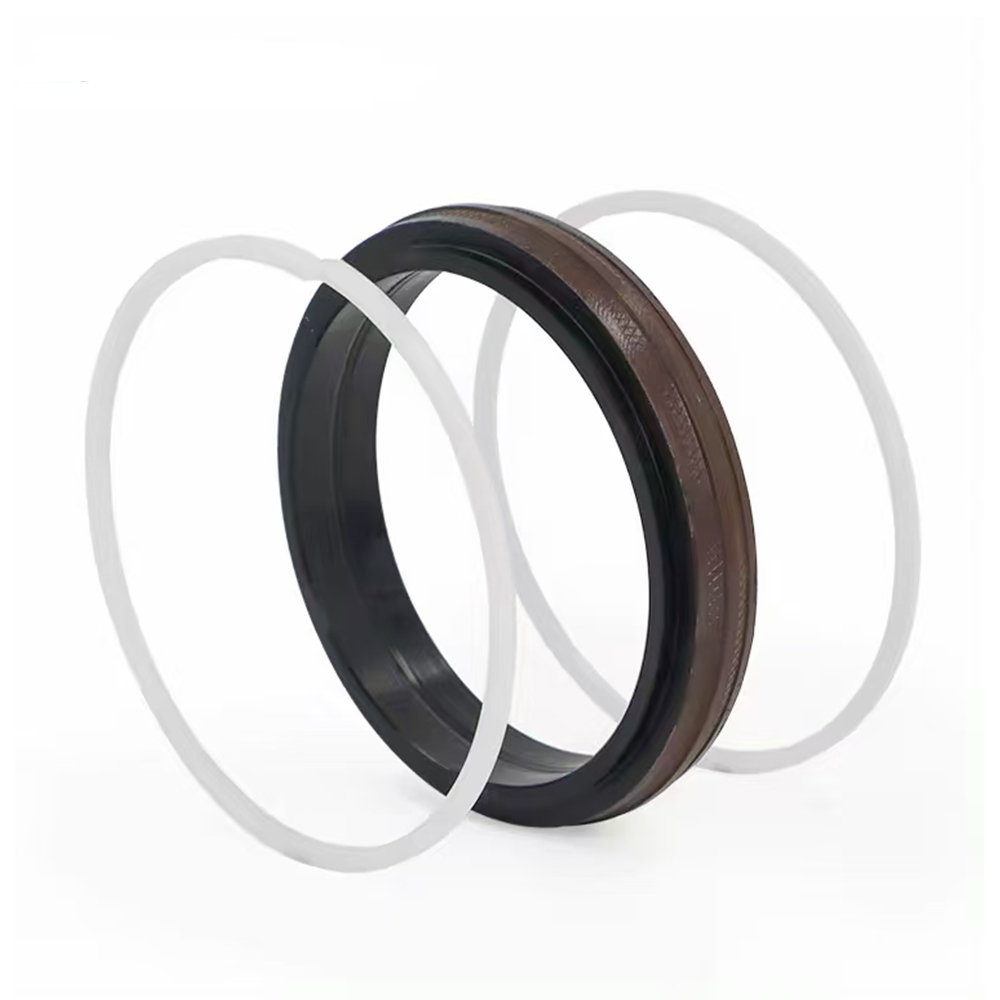

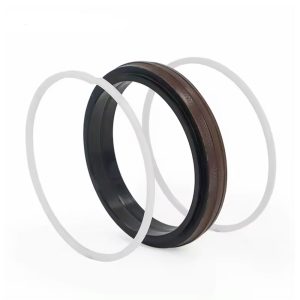

Hydraulic Cylinder Seals Parker ZP Type
Hydraulic cylinder seals parker ZP provide reliable sealing solutions, preventing leaks and improving the performance of hydraulic systems. These seals are built for durability, offering long-lasting efficiency in demanding applications, ensuring smooth and effective operation.
JSPZP is a top-of-the-range double-action piston seal.
Min. Order Quantity: 10 pcs
Supply Ability: 1000 Sets per Week
Delivery Time: 5-7 days for samll order
Material: Rubberloth + POM
Temperature: -50 °C~+200°C
Max. Speed：1 m/s
Replacement Part Description:
Overview：
The ZP Piston Seal is a double-acting hydraulic cylinder seal, engineered for high pressures and extreme pressure peaks. Its robust design ensures exceptional wear resistance and reliable performance in the harshest conditions.
Features and Benefits：
1.Superior Sealing Performance
•Delivers exceptional static and dynamic sealing, even in non-pressurized conditions.
•Compatible with both double-acting and single-acting applications.
2.Robust and Durable Design
•High wear resistance for prolonged service life.
•Insensitive to contamination in the hydraulic medium or minor surface damage.
•Withstands extreme pressure peaks with ease.
3.Enhanced Efficiency
•Low and consistent dynamic friction throughout its lifespan.
•Optimized lubrication from pressure medium deposits in the dynamic contact area.
4.Ease of Installation
•Simple housing design and compatibility with open housings make installation efficient.
5.Cost-Effective and Reliable
•Long service life due to application-specific materials.
•Exceptional extrusion resistance ensures reliability in demanding applications.
Hydraulic Cylinder Seals Parker ZP Type Applications:
Ideal for use in hydraulic systems subjected to high-pressure operations, extreme conditions, and rigorous performance requirements.

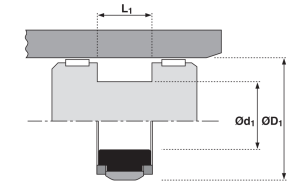

Product Cross Section
Hydraulic Cylinder Seals-Parker ZP Specification:
| TYPE | D1 | d1 | L1 | ORDER SIZE |
| JSPZP | 110 | 95 | 16 | 110*95*16 |
| JSPZP | 110 | 95 | 18 | 110*95*18 |
| JSPZP | 115 | 97 | 22.5 | 115*97*22.5 |
| JSPZP | 120 | 105 | 16 | 120*105*16 |
| JSPZP | 125 | 110 | 15.8 | 125*110*15.8 |
| JSPZP | 130 | 115 | 16 | 130*115*16 |
| JSPZP | 140 | 125 | 16 | 140*125*16 |
| JSPZP | 150 | 133 | 20 | 150*133*20 |
| JSPZP | 160 | 145 | 16 | 160*145*16 |
| JSPZP | 165 | 150 | 16 | 165*150*16 |
| JSPZP | 180 | 163 | 20 | 180*163*20 |
| JSPZP | 190 | 170 | 16 | 190*170*16 |
| JSPZP | 200 | 180 | 16 | 200*180*16 |
| JSPZP | 205 | 185 | 16 | 205*185*16 |
| JSPZP | 210 | 190 | 16 | 210*190*16 |
| JSPZP | 220 | 195 | 22 | 220*195*22 |
| JSPZP | 220 | 200 | 20 | 220*200*20 |
| JSPZP | 224 | 204 | 20.5 | 224*204*20.5 |
| JSPZP | 230 | 210 | 16 | 230*210*16 |
| JSPZP | 245 | 220 | 25 | 245*220*25 |
| JSPZP | 260 | 235 | 25 | 260*235*25 |
| JSPZP | 270 | 245 | 24 | 270*245*24 |
| JSPZP | 280 | 255 | 25 | 280*255*25 |
| JSPZP | 290 | 265 | 27 | 290*265*27 |
| JSPZP | 300 | 275 | 25 | 300*275*25 |
| JSPZP | 310 | 285 | 25 | 310*285*25 |
| JSPZP | 320 | 295 | 25 | 320*295**25 |
