Hydraulic Rod Seal
Hydraulic Rod Seal ensures reliable sealing for hydraulic systems, preventing leaks and maintaining pressure. Made with durable materials, it extends the lifespan of equipment, reduces downtime, and lowers maintenance costs. Perfect for heavy-duty applications and efficient performance.
Min.Order Quantity: 5 pcs
Supply Ability: 1000 Sets per Week
Delivery Time: 5-7 days for samll order
Replacement Part Description:

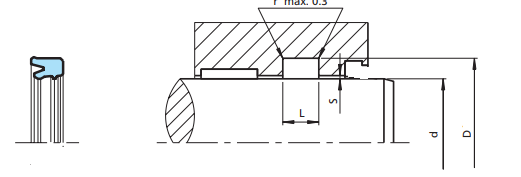

Product Cross Section
VOE 14589143 Applications:
Rod Double Lip PU Rod Seal Advantages
• Low friction with excellent sealing efficiency.
• Simple groove design for easy installation, suitable for closed grooves.
• Resistant to sudden loads and high pressure without performance loss.
• Offers strong chemical resistance and outstanding wear durability.
• Maintains an effective seal at both high and low pressures.
• Compensates for rod deflections to ensure consistent performance.
• Creates a well-lubricated chamber between sealing lips for optimal operation.
• The design of lips.
Hydraulic Rod Seal Specification:
| ITM | ID | OD | L |
| JSUR | 50 | 60 | 6 |
| JSUR | 55 | 65 | 6 |
| JSUR | 60 | 70 | 6 |
| JSUR | 65 | 75 | 6 |
| JSUR | 70 | 80 | 6 |
| JSUR | 75 | 85 | 6 |
| JSUR | 80 | 90 | 6 |
| JSUR | 55 | 65 | 8 |
| JSUR | 65 | 75 | 8 |
| JSUR | 50 | 65 | 9 |
| JSUR | 55 | 65 | 9 |
| JSUR | 55 | 70 | 9 |
| JSUR | 60 | 75 | 9 |
| JSUR | 65 | 80 | 9 |
| JSUR | 70 | 85 | 9 |
| JSUR | 75 | 90 | 9 |
| JSUR | 80 | 95 | 9 |
| JSUR | 85 | 100 | 9 |
| JSUR | 90 | 105 | 9 |
| JSUR | 95 | 110 | 9 |
| JSUR | 100 | 115 | 9 |
| JSUR | 105 | 120 | 9 |
| JSUR | 110 | 125 | 9 |
| JSUR | 115 | 130 | 9 |
| JSUR | 120 | 135 | 9 |
| JSUR | 95 | 115 | 9 |
| JSUR | 50 | 63 | 10 |
| JSUR | 60 | 73 | 10 |
| JSUR | 55 | 68 | 10 |
| JSUR | 60 | 75 | 10 |
| JSUR | 65 | 78 | 10 |
| JSUR | 70 | 83 | 10 |
| JSUR | 80 | 93 | 10 |
| JSUR | 75 | 88 | 10 |
| JSUR | 70 | 85 | 10 |
| JSUR | 75 | 90 | 10 |
| JSUR | 80 | 95 | 10 |
| JSUR | 85 | 100 | 10 |
| JSUR | 90 | 105 | 10 |
| JSUR | 95 | 110 | 10 |
| JSUR | 100 | 115 | 10 |
| JSUR | 105 | 120 | 10 |
| JSUR | 100 | 120 | 10 |
| JSUR | 110 | 130 | 10 |
| JSUR | 120 | 140 | 10 |
| JSUR | 55 | 75 | 12 |
| JSUR | 60 | 80 | 12 |
| JSUR | 65 | 85 | 12 |
| JSUR | 70 | 90 | 12 |
| JSUR | 75 | 95 | 12 |
| JSUR | 85 | 100 | 12 |
| JSUR | 85 | 105 | 12 |
| JSUR | 90 | 110 | 12 |
| JSUR | 95 | 110 | 12 |
| JSUR | 95 | 115 | 12 |
| JSUR | 100 | 120 | 12 |
| JSUR | 105 | 125 | 12 |
| JSUR | 110 | 130 | 12 |
| JSUR | 115 | 135 | 12 |
| JSUR | 120 | 140 | 12 |
| JSUR | 130 | 150 | 12 |
| JSUR | 105 | 125 | 15 |
| JSUR | 115 | 135 | 16 |
| JSUR | 130 | 150 | 16 |
