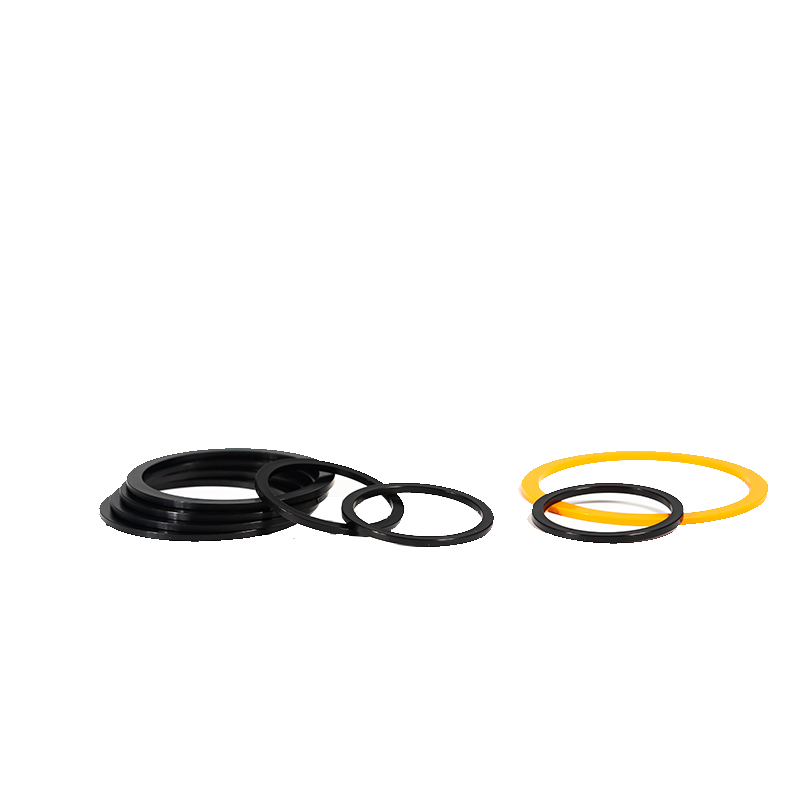

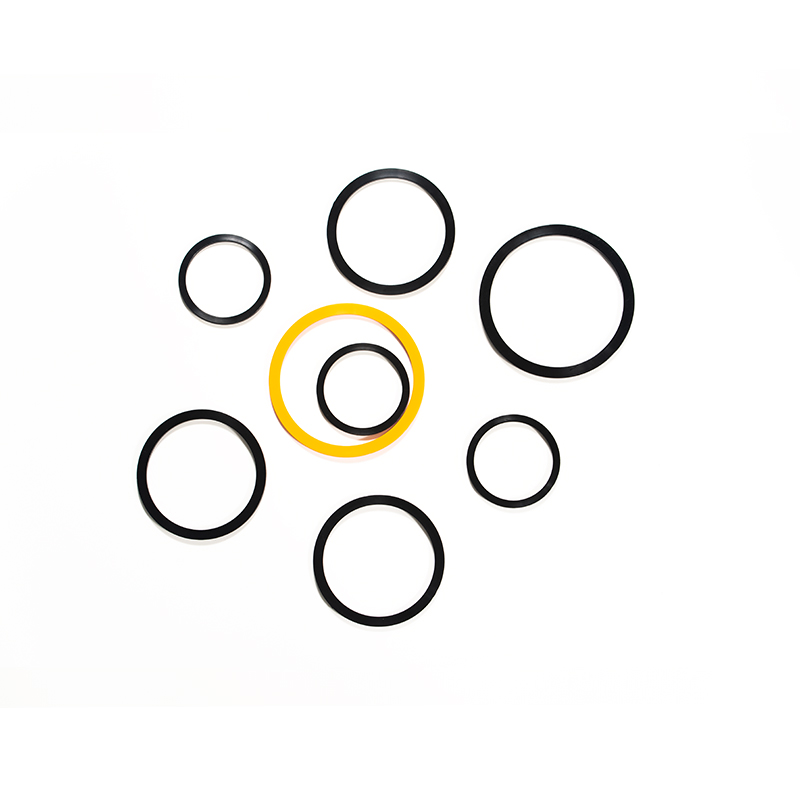

Rod Seal Nylon Backup Ring
Rod seal nylon backup ring provides essential support to rod seals, preventing extrusion and improving sealing performance. These durable rings reduce leakage, enhance hydraulic system efficiency, and extend component lifespan. Ideal for improving the performance of hydraulic cylinders in heavy machinery.
Min.Order Quantity: 1 Set or 1 Bag
Supply Ability: 1000 Sets per Week
Delivery Time: 5-7 days for samll order
Replacement Part Description:
Advantages:
– Good chemical and wear resistance.
– Improves seal extrusion resistance, thereby extending seal service life.
Important tips:
The seal cannot be used alone and must be used in conjunction with the piston rod seal.
When the system pressure is high, it is recommended to use PA material.
All retaining rings are divided into two types: integral and open.
| ITM | ID | OD | H |
| JSBRT | 25 | 35 | 2 |
| JSBRT | 30 | 40 | 2 |
| JSBRT | 30 | 40 | 3 |
| JSBRT | 30 | 43 | 3 |
| JSBRT | 32 | 42 | 2 |
| JSBRT | 32 | 48 | 3 |
| JSBRT | 35 | 45 | 2 |
| JSBRT | 35 | 45 | 3 |
| JSBRT | 40 | 50 | 2 |
| JSBRT | 40 | 50 | 3 |
| JSBRT | 40 | 55 | 3 |
| JSBRT | 45 | 55 | 2 |
| JSBRT | 45 | 55 | 3 |
| JSBRT | 45 | 60 | 3 |
| JSBRT | 50 | 60 | 2 |
| JSBRT | 50 | 60 | 3 |
| JSBRT | 50 | 63 | 3 |
| JSBRT | 50 | 65 | 2 |
| JSBRT | 50 | 65 | 3 |
| JSBRT | 50 | 70 | 2 |
| JSBRT | 55 | 65 | 2 |
| JSBRT | 55 | 68 | 3 |
| JSBRT | 55 | 70 | 3 |
| JSBRT | 60 | 70 | 2 |
| JSBRT | 60 | 70 | 3 |
| JSBRT | 60 | 73 | 3 |
| JSBRT | 60 | 75 | 3 |
| JSBRT | 65 | 78 | 3 |
| JSBRT | 65 | 80 | 3 |
| JSBRT | 70 | 80 | 2 |
| JSBRT | 70 | 80 | 3 |
| JSBRT | 70 | 83 | 3 |
| JSBRT | 70 | 85 | 2 |
| JSBRT | 70 | 85 | 3 |
| JSBRT | 75 | 88 | 3 |
| JSBRT | 75 | 88 | 4 |
| JSBRT | 75 | 90 | 3 |
| JSBRT | 75 | 95 | 3 |
| JSBRT | 80 | 93 | 3 |
| JSBRT | 80 | 95 | 2 |
| JSBRT | 80 | 95 | 3 |
| JSBRT | 85 | 100 | 2 |
| JSBRT | 85 | 100 | 3 |
| JSBRT | 85 | 100 | 4 |
| JSBRT | 90 | 105 | 2 |
| JSBRT | 90 | 105 | 3 |
| JSBRT | 90 | 110 | 3 |
| JSBRT | 95 | 110 | 2 |
| JSBRT | 95 | 110 | 3 |
| JSBRT | 95 | 115 | 3 |
| JSBRT | 100 | 115 | 2 |
| JSBRT | 100 | 115 | 3 |
| JSBRT | 100 | 120 | 3 |
| JSBRT | 105 | 120 | 2 |
| JSBRT | 105 | 120 | 3 |
| JSBRT | 110 | 125 | 2 |
| JSBRT | 110 | 125 | 3 |
| JSBRT | 110 | 130 | 3 |
| JSBRT | 115 | 130 | 2 |
| JSBRT | 115 | 130 | 3 |
| JSBRT | 120 | 135 | 2 |
| JSBRT | 125 | 140 | 2 |
| JSBRT | 125 | 140 | 3 |
| JSBRT | 130 | 145 | 2 |
| JSBRT | 145 | 160 | 2 |
